Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib
Liya 17 foot hypalon boat rib

Liya Tube Option

1. French Orca Hypalon or Germany PVC Inflatable Tube

2. Solid Foam Tube

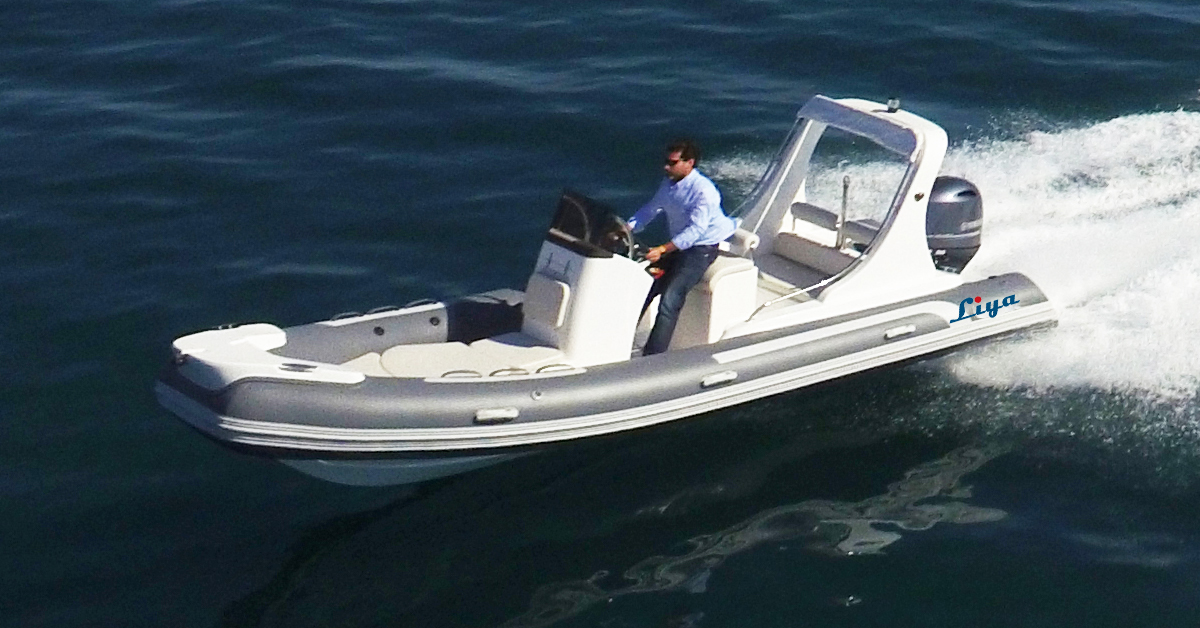

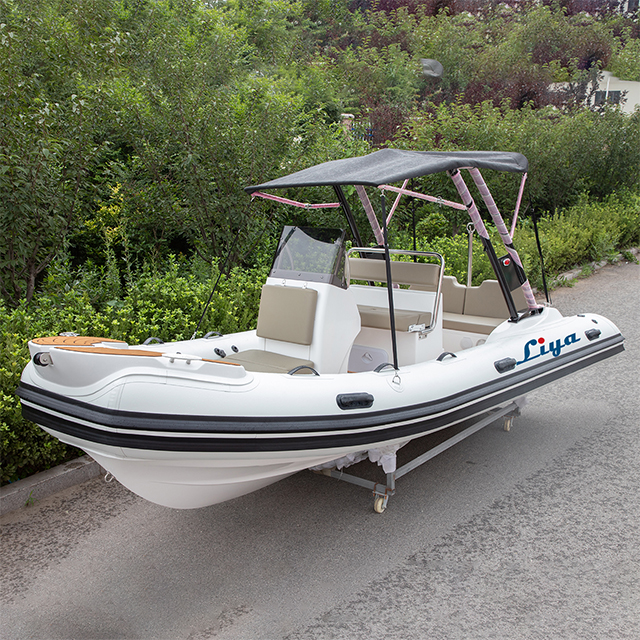

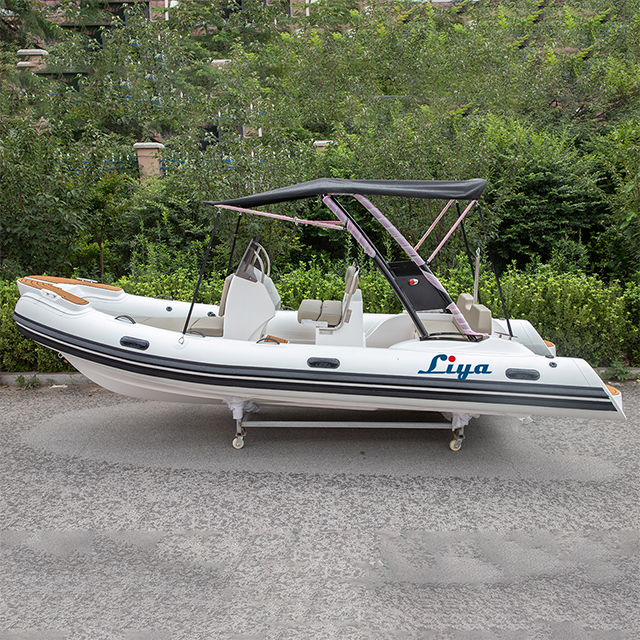

Liya 17 foot hypalon boat rib with outboard motor for 8-10 people
17ft rib boats
10 passenger ribs
Recommend HP: 70HP
Max HP: 90HP
Vacuum adsorption for hulls
  • HYP520

  • Liya

  • 8903.190000

库存: 0
Inquire

Liya 17 foot hypalon boat rib with outboard motor for 8-10 people


17Feet Rigid inflatable boat hypalon•Bow sun cushions, can also replace with the table at bow.
•The 17feet hypalon boat of inside fuel tank can be replace or repairable.

Fiberglass hull by Vacuum absorption ,Make boat Lighter weight, stronger,and more waterproof,with 5 years guarantee;

PVC core replace traditional wood inside deck ,make boat Lighter weight, stronger,and more waterproof;

Longitudinal and transverse inside keel jointed configuration make fiberglass strong and stable on big wave water.

·Reasonable , scientific tube seam to avoid leaking.


Liya Tube Selection:

1. France Orca Hypalon/Germany PVC inflatable tube

Tube Features

Hypalon tube: made of Orca Hypalon from France, this material has UV resistance, high and low temperature resistance, wear resistance, and can prevent fuel, chemical, water, and air leakage.

PVC tube: Made of German PVC, its multi-stage design reduces the vulnerability of punctures.

Safety and design:

Both use British Leafield valves and segmented airtight seals to prevent leaks.

Hypalon wear-resistant strips have been added to protect the cylinder from wear and improve durability and safety.

Inflatable tube warranty: 3-5 years

2. Foam filled solid tube

Core structure:

The dense foam core provides permanent buoyancy, eliminating the risk of air leakage.

Durability advantage:

Designed to resist punctures, cracks, and ruptures.


17Feet Rigid Inflatable Boat Tech Specification Data

Full length

520cm/17ft

Full width

220cm/7.2ft

Inside length

460cm/14.8ft

Inside width

115cm

Tube diameters

51cm/1.7ft

Engine Shaft

25 inch

Air chamber No

5

Max Person

10

20’ Container

2pcs

Max loading

1345kg

40’ container

4pcs

V shape degree

21°



Category

C


Engine Information


Engine type

Outboard

Fuel type

Gas

Fuel capacity

150L

Recommend HP

70HP

Max HP

(If install maximum hp engine, confirm with factory, very important for boat)

90HP

Engine shaft

25inch

Number of engine

1

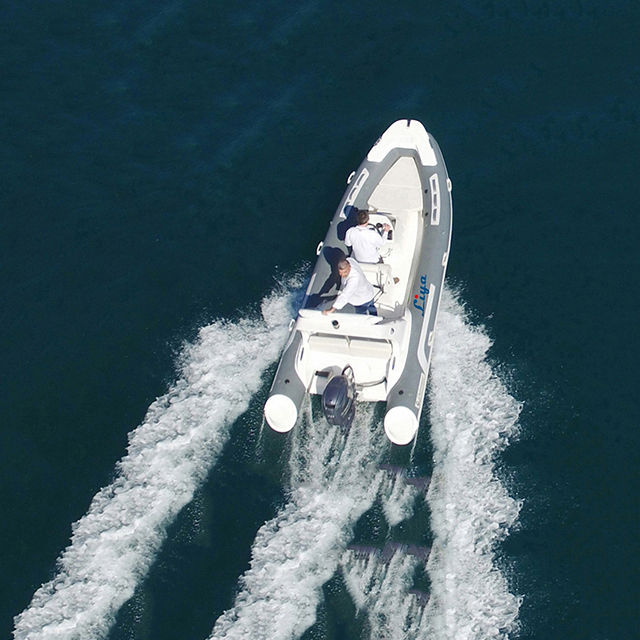

5.2 meter center console rigid inflatable boats

17Feet Rib Boat Luxury

Standard Accessories:

1. Hypalon or PVC soft handle

2. Bow storage box with cushion

3. Hypalon or PVC rubbing strake

4. Console F-2, storage box with cushion

5. Seat E, storage box with cushion, table inside

6.Iron frame with pulley to place boat

7. stainless steel cleats

8. UK Air valve

9. 2 pcs Stainless steel D rings at stern ,

    2 pcs stainless steel D rings at front

10.150L fuel tank with oil guage, gas vent, oil filling port, cables inside


11.Foot pump & Bilge pump

12. Stern seat storage with cushions with backrest

13. 2pcs hydraulic supports on console

14. Motor plate on transom

15.Drain plug use for deck

16.Drain plug use for inside hull

17. Battery box and switch for 60A

18. Repair kits
