Liya Tube Option

1. French Orca Hypalon or Germany PVC Inflatable Tube

2. Solid Foam Tube

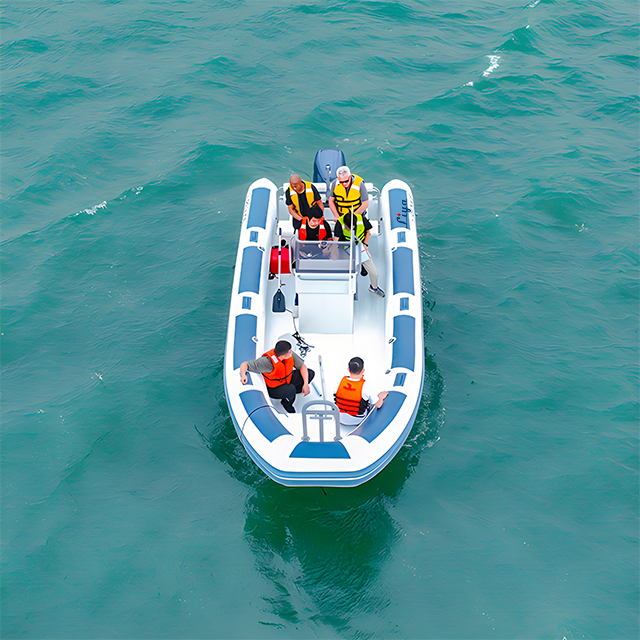

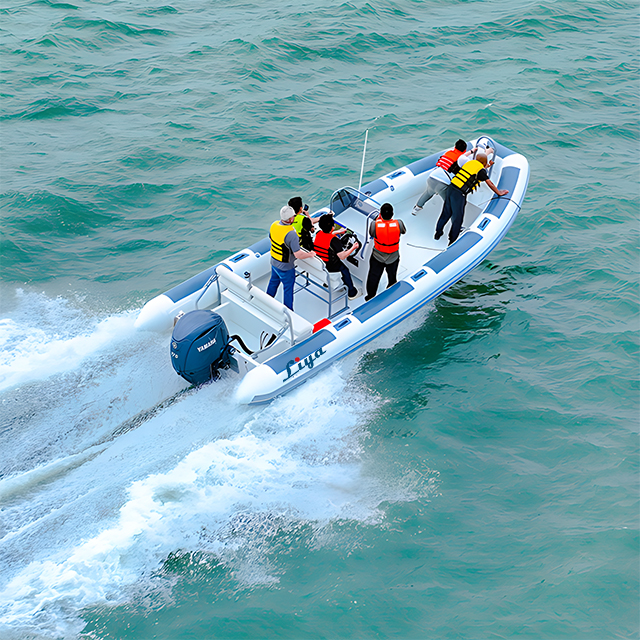

7 Meter Auxiliary boat, service boat rib for yacht
23 Feet Aluminum RIB with centre console for 14 people
200HP Max recommend power engine
  • LY70-Alu

  • Liya

  • 8903.190000

库存: 0
Inquire
Insert here your custom code
tonglanbeijingtu2

Liya 23 Feet Alulminum Hull RIB Inflatable Boats For Sale

More videos please chek : https://www.youtube.com/@LiyaBoat

Liya Boat has two types tubes for option

  1. Hypalon/PVC Inflatable Tube:

Hypalon tube (From French orca material): Anti-UV, high & low temperature resistance, mechanical & abrasion resistance, fuel & chemical resistance
water & air tightness

PVC tube (From German material): PVC tubes are usually constructed in separate sections to reduce the effect of a puncture, each with a valve  to add or remove air.

Both used UK Leafield valves, sealed compartments, and Hypalon rubbing strake protect tubes.

  1. Solid Foam Tube:
Foam-solid core guarantees permanent buoyancy, puncture-proof performance, and no risk of deflation.

23 Feet RIB Boat Hypalon Specification

Model

LY70-Alu

Max capacity

14 people

Length overall

7m/23'

Max loading

1700kgs

Inside length

6.3m/20.7'

Net weight

790kgs

Width overall

2.7m/8.9'

Airtight compartment

6 pcs

Inside width

1.65m/5.4'

40ft container

2 pcs

Tube diameter

0.5m

V shape degree

27°

Outboard Engine Data

Single engine shaft

XL 25'

Twin engine shaft

XL 25'

Recommended power

150HP

Max power

(If install maximum hp engine, confirm with factory, very important for boat.)

200HP

23 Feet Alulminum Centre Console RIB

Standard Accessories

 1.Hypalon rubbing strake

 2.Hypalon soft handle

 3.Front anchor box

 4.Aluminum console

 5.Aluminum driver seat

 6.Stern seat with backrest & cleat

 7.Mount pad

 8.Powder coated aluminum hull

 9. 200L aluminum fuel tank

10.Foot pump & Bilge pump

11.Lifting points and towing eyes

12.Air valves

13.Iron frame with pulley to place boat

14.Self-draining deck

15.Anti-slip PVC deck

16.Battery box and switch for 60A

17.Repair kits
