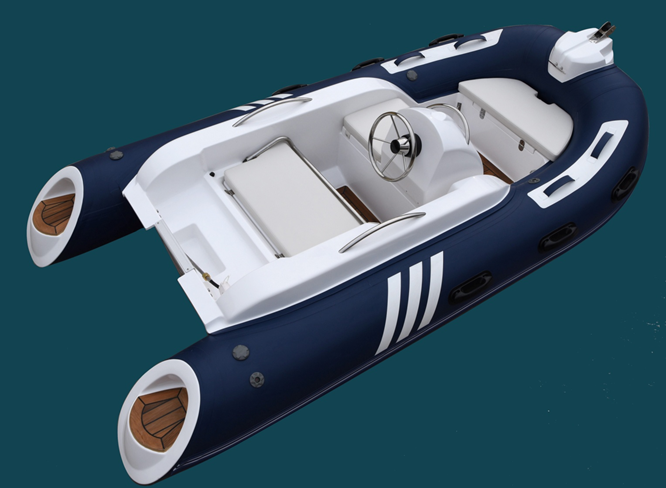

Liya 11 Feet rib yacht tender 3.3 meter Inflatable boat dinghy for 5 People
•China rib boat 330 is ideal model comfortable for family and holiday use;
•11Feet rib tender can install 15-30HP, single engine;
•The inside fuel tank can be replace or repairable for long time use.
•Fiberglass hull by Vacuum absorptionmake boat Lighter weight, stronger,and more waterproof,5 years guarantee;
PVC corereplace traditional wood inside deck ,make boat Lighter weight, stronger,and more waterproof;
• Longitudinal and transverse inside keel jointed configuration make fiberglass strong and stable on big wave water.
Liya Tube Selection:
1. France Orca Hypalon/Germany PVC inflatable tube
Tube Features
Hypalon tube: made of Orca Hypalon from France, this material has UV resistance, high and low temperature resistance, wear resistance, and can prevent fuel, chemical, water, and air leakage.
PVC tube: Made of German PVC, its multi-stage design reduces the vulnerability of punctures.
Safety and design:
Both use British Leafield valves and segmented airtight seals to prevent leaks.
Hypalon wear-resistant strips have been added to protect the cylinder from wear and improve durability and safety.
Inflatable tube warranty: 3-5 years
2. Foam filled solid tube
Core structure:
The dense foam core provides permanent buoyancy, eliminating the risk of air leakage.
Durability advantage:
Designed to resist punctures, cracks, and ruptures.
Full length
3.3Meter/11feet
Full width
1.74Meter/5.7feet
Inside length
2.76m/9feet
Inside width
90cm
Tube diameter
42cm
.Air chamber No
3pcs
Capacity
5people
Max Loading
495kgs
Recommend/Max HP
(If install maximum hp engine,
confirm with factory, very important for boat)
15hp/30hp
V shape
17
20'/40' container loading quantity
5pcs/10pcs
Engine shaft
20inches
11Feet Rib Boat with motor
Standard Accessories:
1. Hypalon or PVC soft handles
2. Hypalon or PVC rubbing strake
3. Bow seat storage box with cushions
4. Console with cushion
5. Stainless steel rail
6. Hypalon or PVC rigid handles
7. Stern seat storage with cushions with backrest
8. Air valves
9. Motor mounting pad
10. 2pcs stainless steel D ring at bow,2pcs stainless steel D ring at stern.
11. 50 liters fuel tank, Oil filling port, Gas vent
