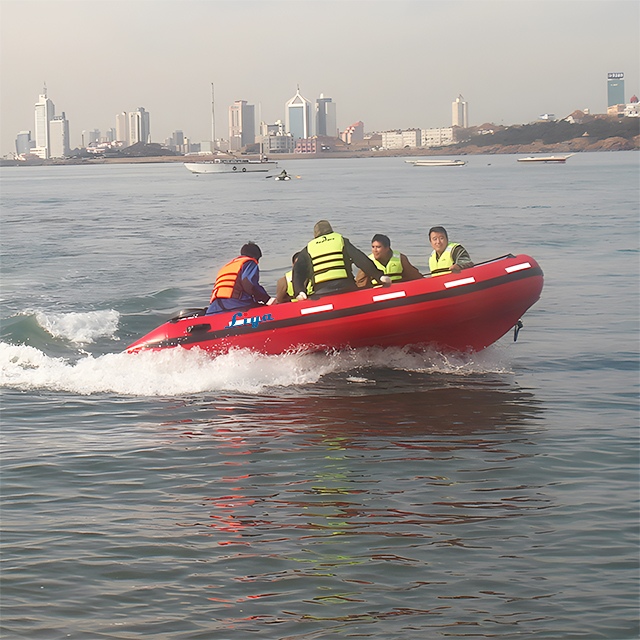

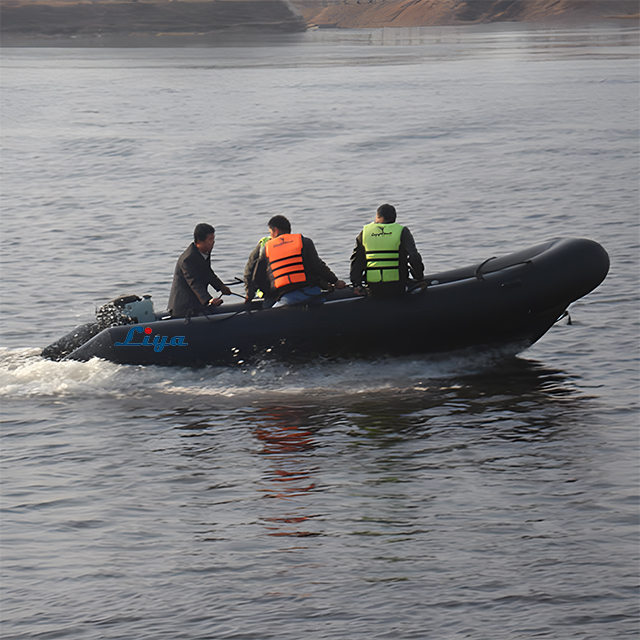

Inflatable Rescue Boats and military,coast guard inflatables with outboard motor used for saving lives during surfing water sport or natural disasters that are related to water like flood, tsunami, etc.
•It consists of dfferent air chamber, heavy-duty interior, V-keel and many other options to ensure effective and safe rescue operations.
Liya Tube Option:
1. Hypalon/PVC inflatable tube
Tube material:
Hypalon tube: made of Orca Hypalon from France, this material has UV resistance, high and low temperature resistance, wear resistance, and can prevent fuel, chemical, water, and air leakage.
PVC tube: Made of German PVC, its multi-stage design reduces the vulnerability of punctures.
Safety and design:
Both use British Leafield valves and segmented airtight seals to prevent leaks.
Hypalon wear-resistant strips have been added to protect the cylinder from wear and improve durability and safety.
Inflatable tube warranty: 3-5 years
2. Foam filled solid tube
Core structure:
The dense foam core provides permanent buoyancy, eliminating the risk of air leakage.
Durability advantage:
Designed to resist punctures, cracks, and ruptures.
3. D shaped foam tube: Alavilable according to personality requirements.
Model | HYP330 | HYP380 | HYP430 |
Full length | 3.3m/11ft | 3.8m/12.5ft
| 4.3M/14ft |
Full width
| 1.74m/5.7ft | 1.8m/6ft
| 1.96m/6.43ft |
Inside length | 2.76m/9ft | 3.3m/11ft | 3.7m/12.14ft |
Inside width | 90cm | 90cm | 100cm
|
Tube diameter | 42cm | 45cm | 48cm |
Air chambe No | 3 pcs | 3 pcs | 4 pcs |
Capacity | 5 people | 4 people | 7 people |
Max Loading | 495kgs | 780kgs | 880kgs |
Recommend/Max HP (If install maximum hp engine, confirm with factory, very important for boat) | 15HP/30HP | 30HP/50HP | 40HP/51HP |
V shape | 17° | 20° | 20° |
20'/40' container loading quantity | 5/10pcs | 4/8pcs | 4/8pcs
|
Engine shaft | 15 inches | 20 inches
| 20 inches |
Model | HYP520 | HYP580 | HYP620 | HYP660 | HYP750 | HYP830 |
Full length | 520cm/17ft | 580cm/19ft | 620cm/20ft | 660cm/22feet | 750cm/24.6ft | 830cm/27ft |
Full width | 220cm/7.2ft | 245cm/8ft | 245cm/8ft | 270cm/8.85ft | 293cm/9.6ft | 300cm/9.9ft |
Inside length | 450cm/14.8ft | 505cm/16.6ft | 545cm/18ft | 585cm/19feet | 660cm/22ft | 810cm/26ft |
V shape degree | 20° | 20° | 20° | 21° | 22° | 22° |
Tube diameter | 51cm | 52cm | 52cm/1.7ft | 52cm/1.7ft | 63cm/2.06ft | 55-60cm/1.8ft |
Air chamber No | 5 | 6 | 6 | 6 | 8 | 8 |
Max passengers | 10 persons | 10 persons | 12 persons | 12persons | 16persons | 12persons |
Engine shaft | 20/25inch | 25inch | 25inch | 25inch | 25inch | 25inch |
Recommend HP | 70 HP | 90 HP | 115 HP | 150HP | 250HP | 250HP |
Max HP (If install maximum hp engine, confirm with factory, very important for boat) | 90 HP | 115 HP | 150 HP | 200HP | 300HP | 300HP |
Hull weight | 315kg | 450kg | 500kg | 670kg | 1100kg | 1600kg |
Gross weight | 350kg | --- | --- |
|
|
|
Max loading | 1345kg | 1345kg | 1345kg | 1664kg | 1800kg | 2300kg |
20 feet container | 3pcs | 2pcs | 2pcs |
|
|
|
40 feet container | 7pcs | 4pcs | 4pcs | 4pcs | 2pcs | 2pcs |
Category | C | C | C | C | C | C or B |
